Product Description

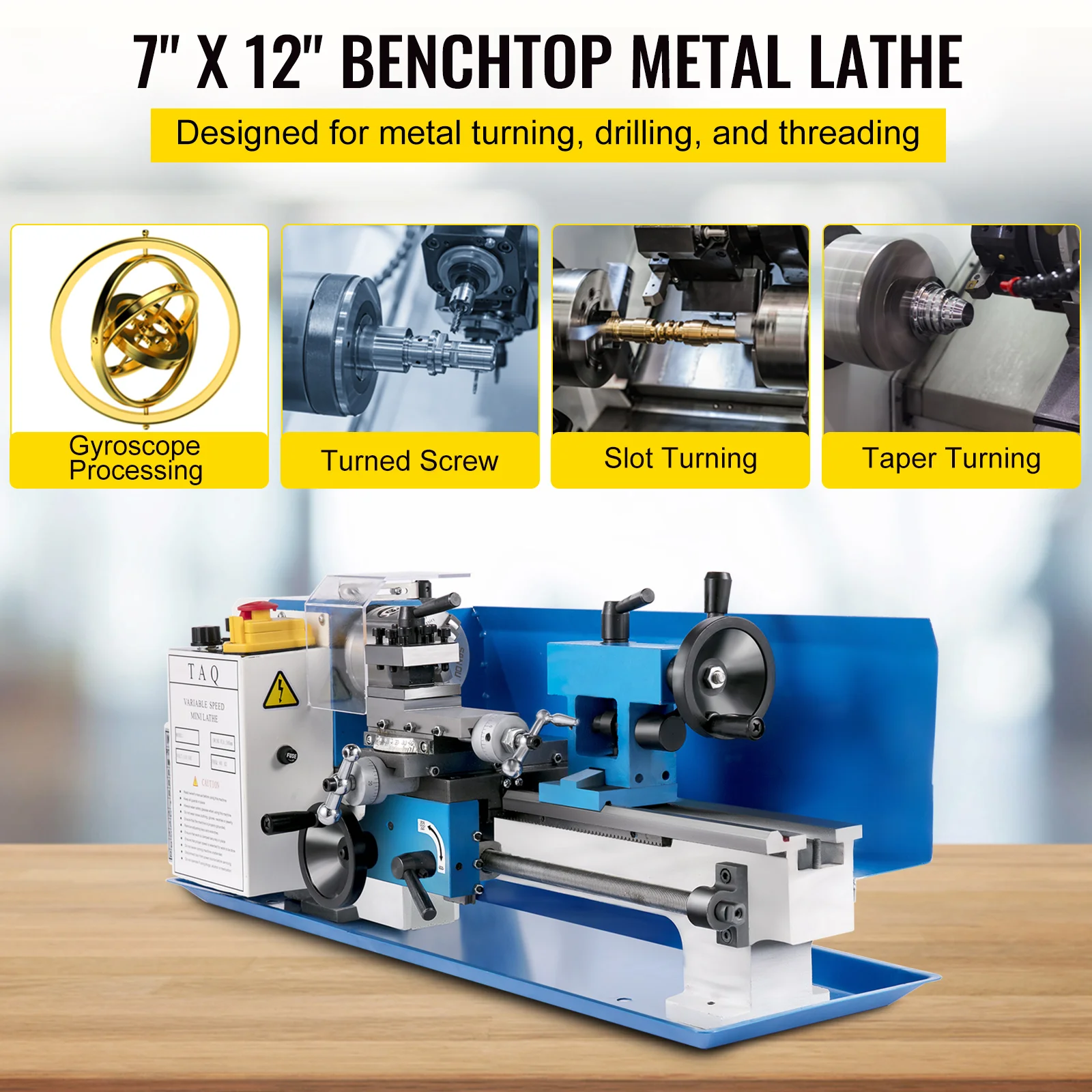

7″ x 12″ Metal Lathe
Variable-speed & w/ a Movable Lamp & an Extra 4-Jaw Chuck
The reinforced metal construction provides a sturdy base for a more accurate rotation and the splash guard ensures maximum protection during use. With this lathe you will get a superb workhorse. The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, and a 3/4 HP motor. 0-2250 RPM continuously adjustable. Compact easy-to-use machine meets powerful precise lathe. It’s the excellent addition to your workbench.
- Sturdy Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Friendly Note: Blue / Red metal lathe is shipped randomly
Key Features
Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 11.81 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.
Stepless Speed Control
Variable speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. One extra 4-Jaw independent chuck for you.

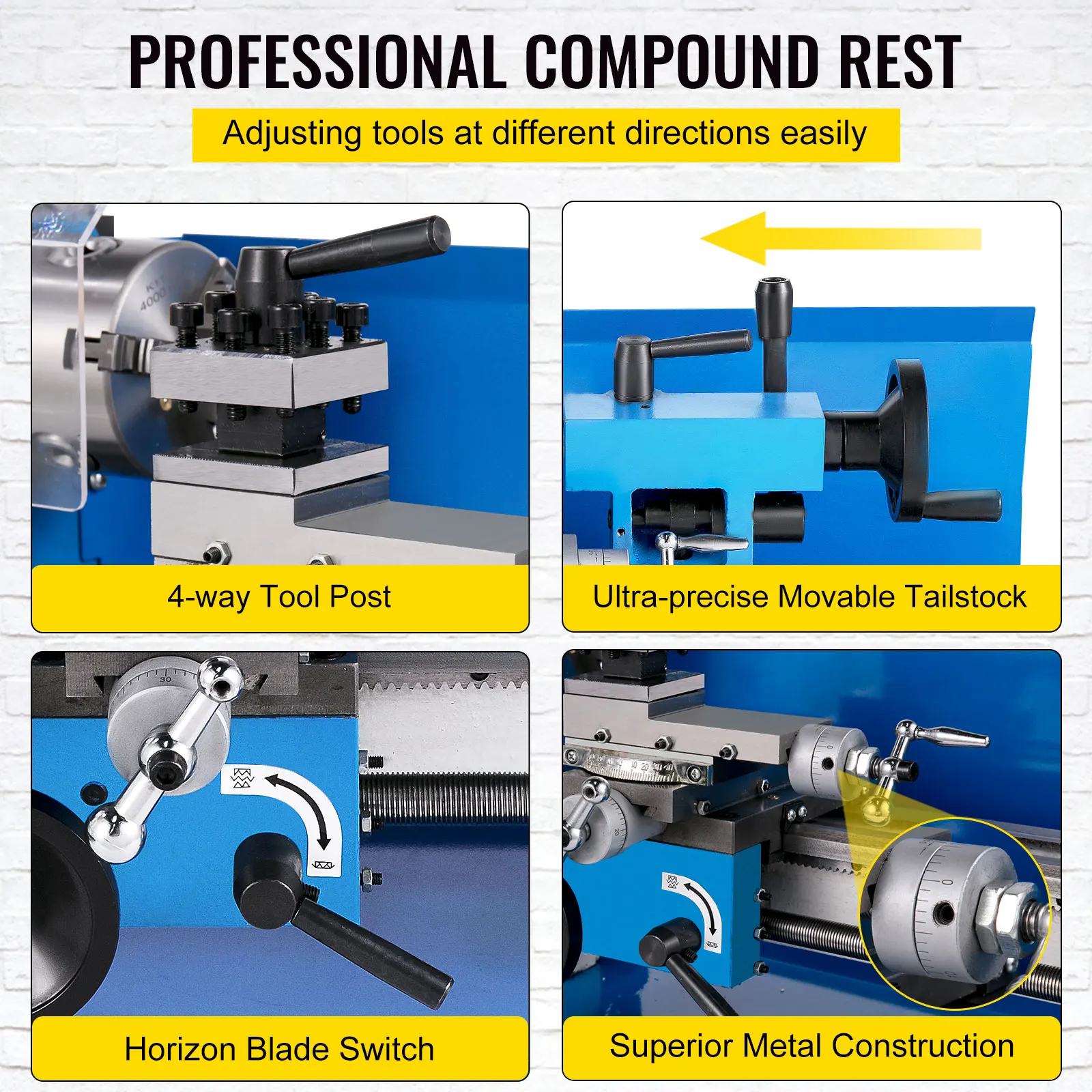

Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. 1 x free quick change tool post set.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 300 mm / 11.81″. A lamp is for accurate operation in dark circumstances.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
Specifications
- Power of Motor: 550W DC Single Phase
- Spindle Speed: 0-2250 RPM
- Swing Over Bed: 7.09″ / 180 mm
- Chuck Diameter: 3.15″ / 80 mm
- Centers Distance: 11.81″ / 300 mm
- Spindle Bore: 0.83″ / 21 mm
- Inch Thread: 12-52 T.P.I
- Metric Thread: 0.4-2 mm
- Tail Stock Taper: MT2
- Spindle Taper: MT3
- Gear Material: Plastic Nylon
- Power Source: Electric
- Control: Manual
- Machine Type: Metal Lathe
- Treated Material: Metal
- Item Weight: 110.23 lbs / 50 kg
- Item Dimensions: 27.4 × 8.5 × 11.2 in / 69.8 × 21.7 × 28.5 cm
Package Content
- 1 x Mini Metal Lathe(Including a 3-jaw Chuck)
- 9 x Cutter
- 1 x Tail Stock Chuck
- 1 x Live Centre
- 1 x Fixed and Travelling Steadies Set
- 1 x 4-Jaw Independent Chuck
- 7 x Chuck Jaw
- 1 x Quick Change Tool Post Set
- 4 x Engineers Measuring Kit (Including Caliper and Outside Micrometer)
- 1 x Movable Lamp
- 8 x Nylon Gear
- 1 x Oil Can
- 2 x Wrench
- 7 x Allen Key
- 1 x Accessory Set
- 1 x Manual
Features & Details
- Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides maximum protection.
- Infinitely Variable Speeds: 0-2250RPM spindle speed sublevel of two tranches spindle gear change speed control, continuously adjustable. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp, 1 x 4-Jaw Independent Chuck, 1 x Quick Change Tool Post and 4 x Engineers Measuring Kit are included.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works. 9 Cutters for easy replacement.
