1760LBS Lift Electric Hoist
1450W Copper Motor & Anti-Rotate Steel Wire & High Security
- This lift electric hoist is designed for lifting and moving heavy-duty applications. The steel construction and pure copper motor make it durable and high-efficient. The hoist can be used with a single line 880 lbs/400 kg capacity or double lines 1760 lbs/800 kg capacity. It is an ideal handling tool for factories, docks, warehouses, goods lifting, construction sites, and other places.
- 1760LBS Load Capacity
- 1450W Powerful Motor
- 4.8Ft Control Cord
- Premium Structure
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
Large Load-Bearing
Our lift electric hoist meets your various demands on strength and hardness. The single line capacity and speed are 880 lbs/400 kg, 33 ft/min(10 m/min). Double line capacity and speed are 1760 lbs/800 kg, 17 ft/min(5 m/min).
Handle Switch
The wired remote control in this hoist achieves through a handle switch. The pressing upside is going up, conversely going down. Around 4.8 ft/1.45 m length cable allows you to operate at a certain distance.
High-Quality Copper Motor
The electric hoist winch adopts a 1450W pure copper motor, which features high efficiency and low noise. Furthermore, the electric winch can continuously work for a long time because it radiates rapidly.
Security Design
When the red block touches the limit switch, the motor stops automatically to prohibit the chains from overloading. Moreover, the galvanized steel wire and hook with latch provide double-protected operation.
Easy to Install

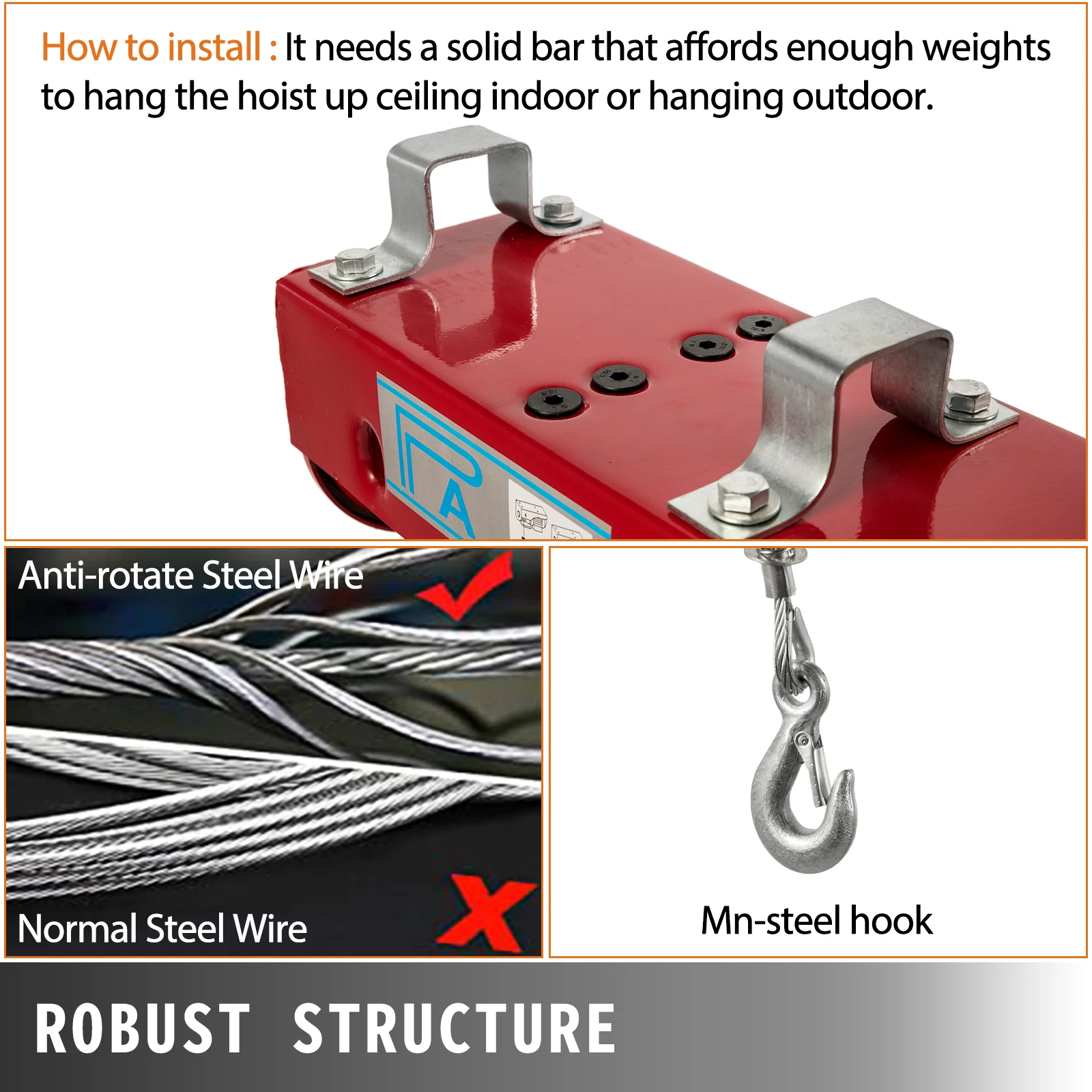

For the purpose of satisfying your needs, our electric hoist is possessed of a metal fixing ring that is installed effortlessly. Just remember the bar’s width and height shall not surpass the internal size of mounting brackets. The ring width: 2.2 in/5.5 cm; height: 2 in/5 cm.
Extensive Uses

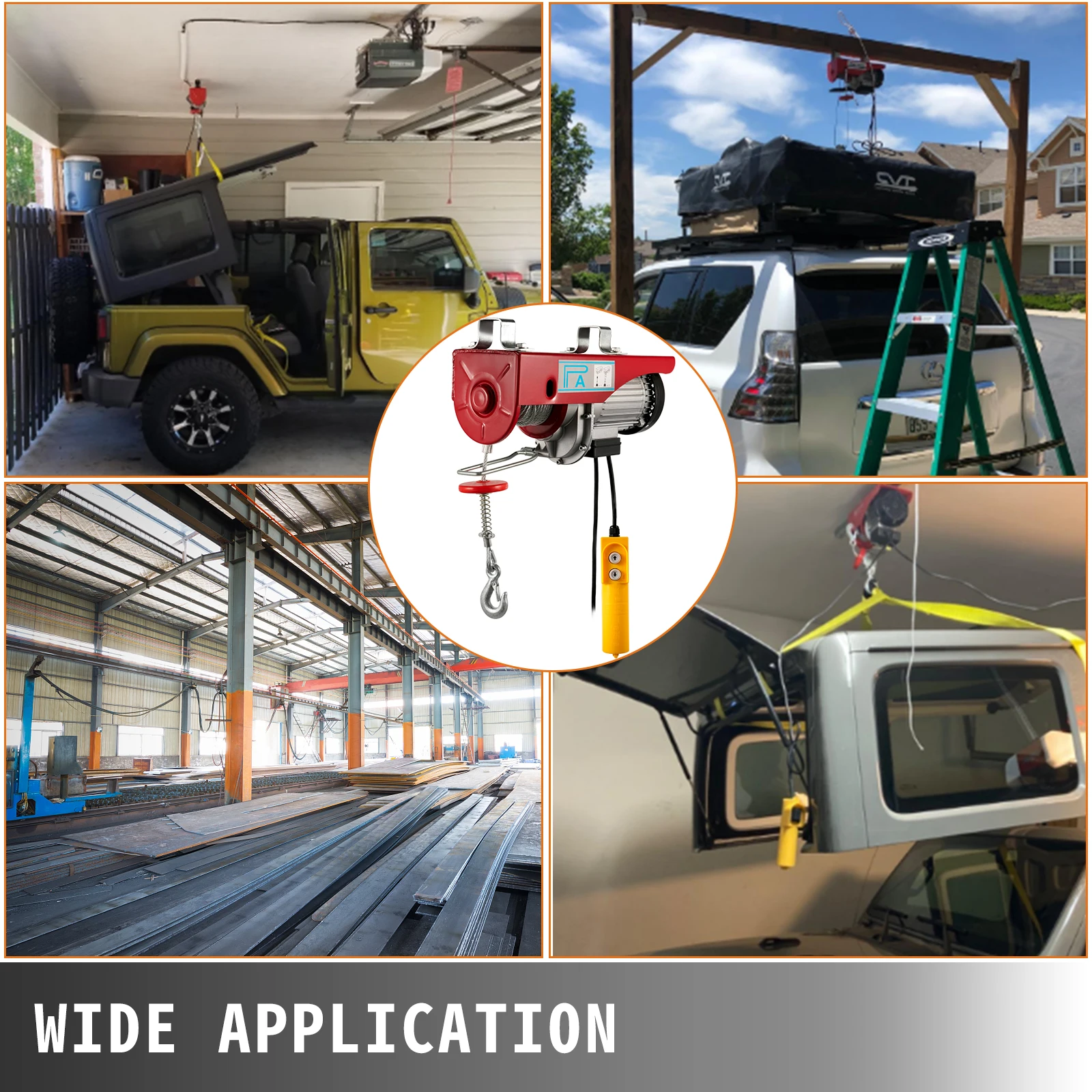

This power electric hoist is an excellent choice to lift regular or irregular shape things such as stones, trees, mowers, engines, and so on. As a result, it is widely used in carmakers, construction sites, logistics, warehouses, etc.
Specifications
- Model: PA800
- Material: Cast Iron & Aluminum
- Voltage: 110V/60Hz
- Power: 1450W
- Load Capacity: 880 lbs / 400 kg, 1760 lbs / 800 kg
- Lifting Height: 39.4 ft / 12 m, 19.7 ft / 6 m
- Lifting Speed: 33 ft/min / 10 m/min, 17 ft/min / 5 m/min
- Steel Line Length: 39.4 ft / 12 m
- Remote Control Cord Length: 4.8 ft / 1.45 m
- Power Cord Length: 2.1 ft / 0.65 m
- Cable Gauge: 0.2 in / 5 mm

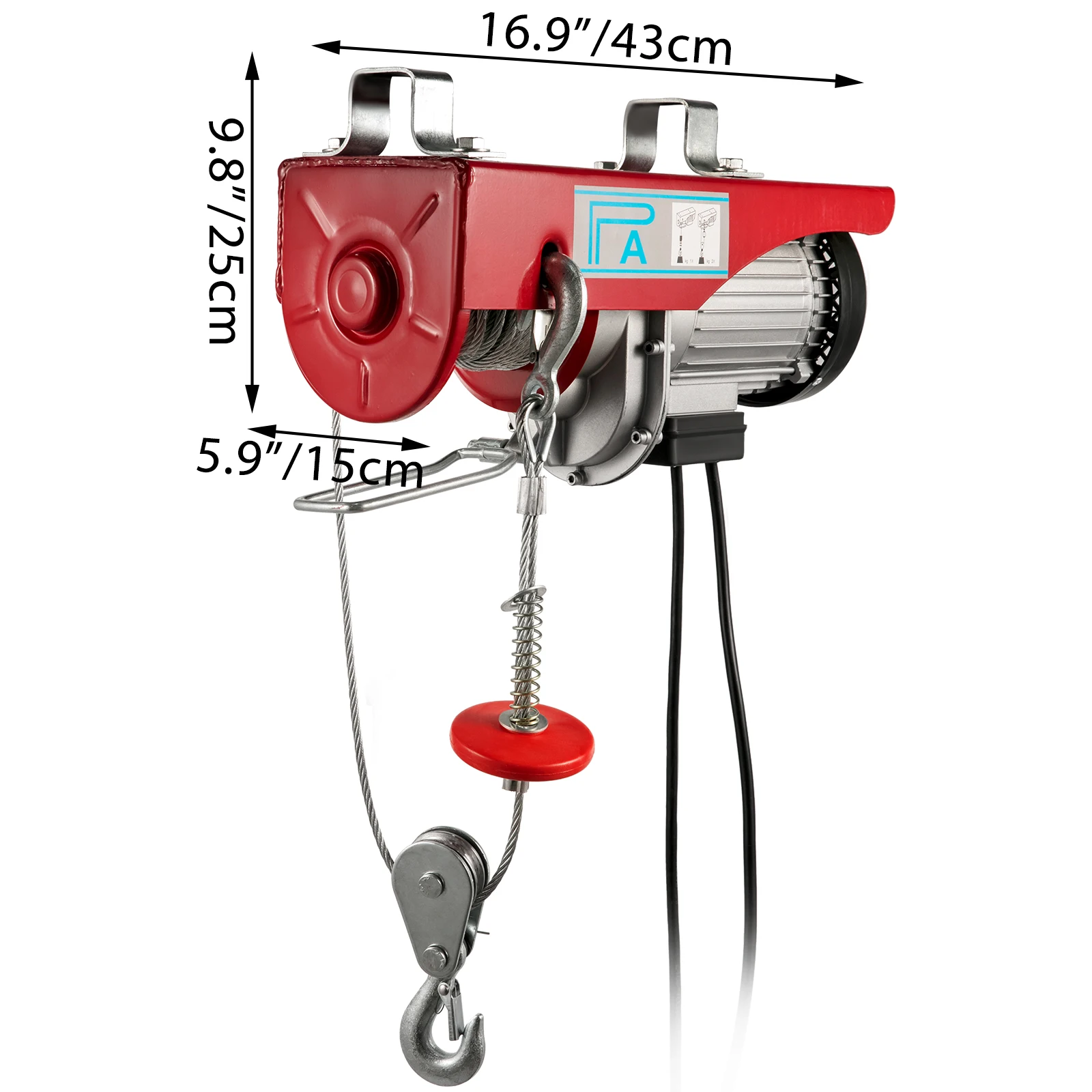

- Item Size: 16.9 x 5.9 x 9.8 in / 43 x 15 x 25 cm
- Item Weight: 41.9 lbs / 19 kg

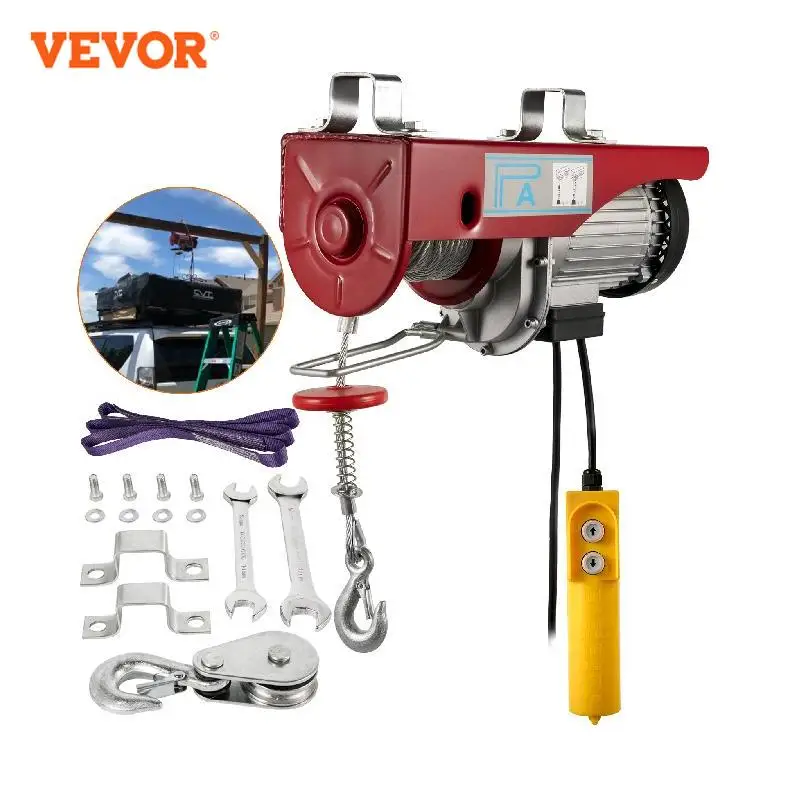

Package Content
- 1 x Lift Electric Hoist
- 2 x Lifting Lugs
- 1 x Moveable Pulley
- 1 x Bag of Screws
Features & Details
- 1760LBS Load Capacity: The electric hoist lifts small engines, transmissions, or building supplies easily. It supports two lifting modes with a security latch steel hook. The capacity and speed of a single line are 880 lbs/400 kg, 33 ft/min(10 m/min). The capacity and speed of the double line are 1760 lbs/800 kg, 17 ft/min(5 m/min).
- 1450W Powerful Motor: The high-quality copper motor provides 1450W strong power that can bear large force without deformation for this electric winch. Besides, the large radiator fan cools the machine quickly with the help of overheat protection. Thus, this powerful motor ensures the high-efficient work and saves more energy.
- 4.8Ft Control Cord: Our electric hoist with remote control is achieved through a handle switch, which is installed on the machine for operating at a secure distance. In addition, our hoist is equipped with a limit switch and buffer spring to stop the machine automatically and avoid drooping.
- Premium Structure: This electric hoist winch is constructed by alloy shell and galvanized steel wire, keep out corrosion, rust, and rain. The steel line length: 39.4 ft/12 m; Diameter: 0.2 in/5 mm. Moreover, The metal fixing ring is adjustable along with your various needs and can be installed easily.
- Wide Application: The power hoist is suitable for factories, warehouses, construction sites, carmakers, railway constructions, etc. It is an ideal tool for working in harsh indoor or outdoor environments. Please use it among the bar’s width and height to compatible with the inner sizes of mounting brackets.
