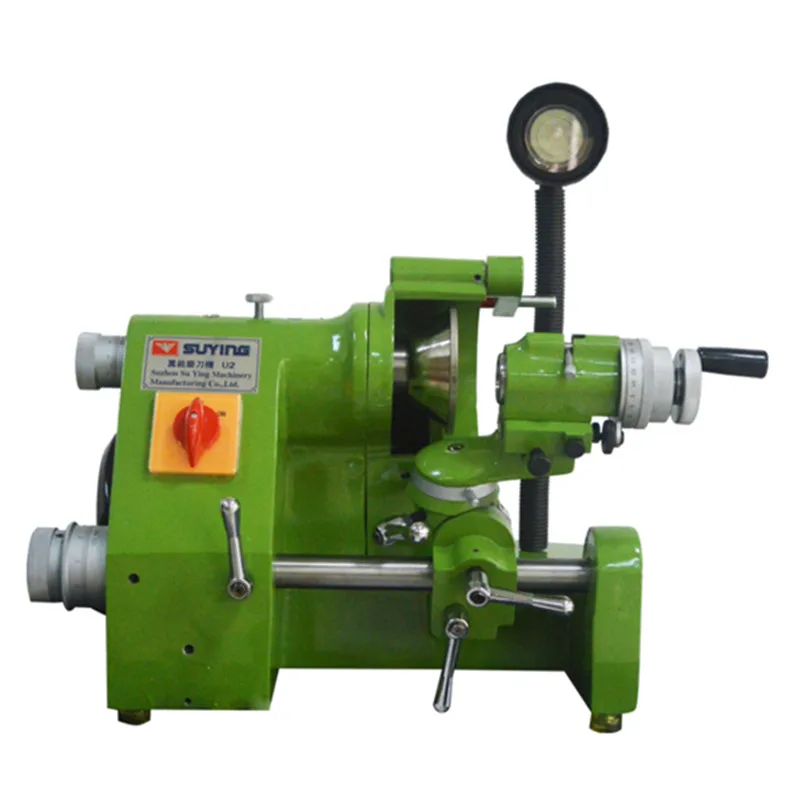

CNC Milling Machine U2 Universal Cutter

The U2 Universal Cutter Grinder is a versatile machine designed for cutting tool grinding and tool sharpening. Here are the key specifications and features:

Specifications:

• Model: U2

• Maximum Clamping Size: ф16mm

• Maximum Grinding Size: ф100mm

• Taper Angle: 0° – 180°

• Relief Angle: 0° – 45°

• Negative Taper Angle: 0° – 26°

• Grinding Wheel Speed: 5200 RPM

• Cup Grinding Wheel: 100 x 50 x 20mm

• Motor Power: 0.375kw, 220V/50Hz

• Machine Size: 45 x 40 x 35cm

• Packing Size: 55 x 45 x 47cm

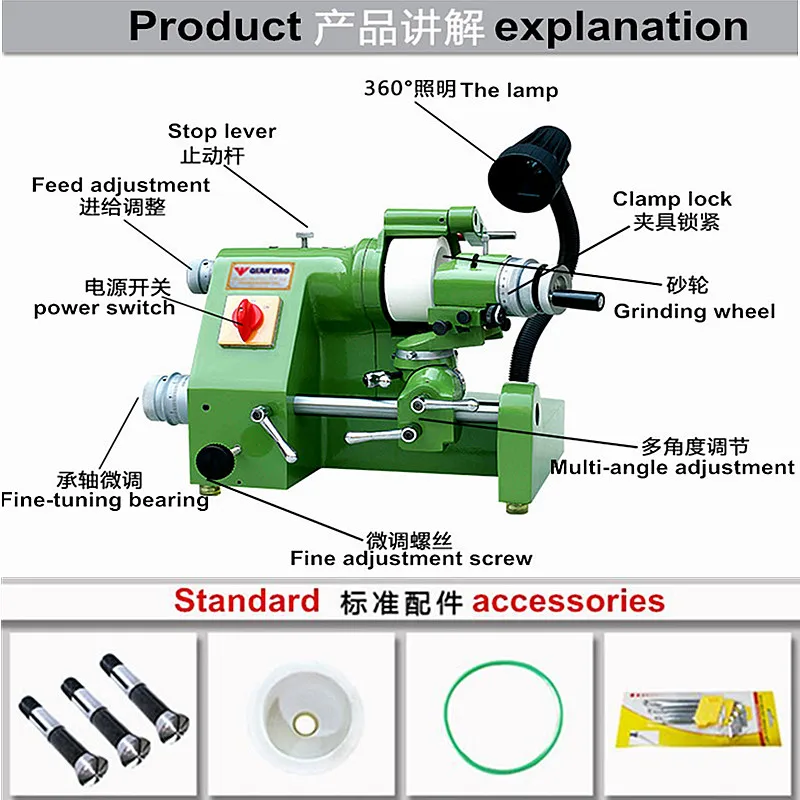

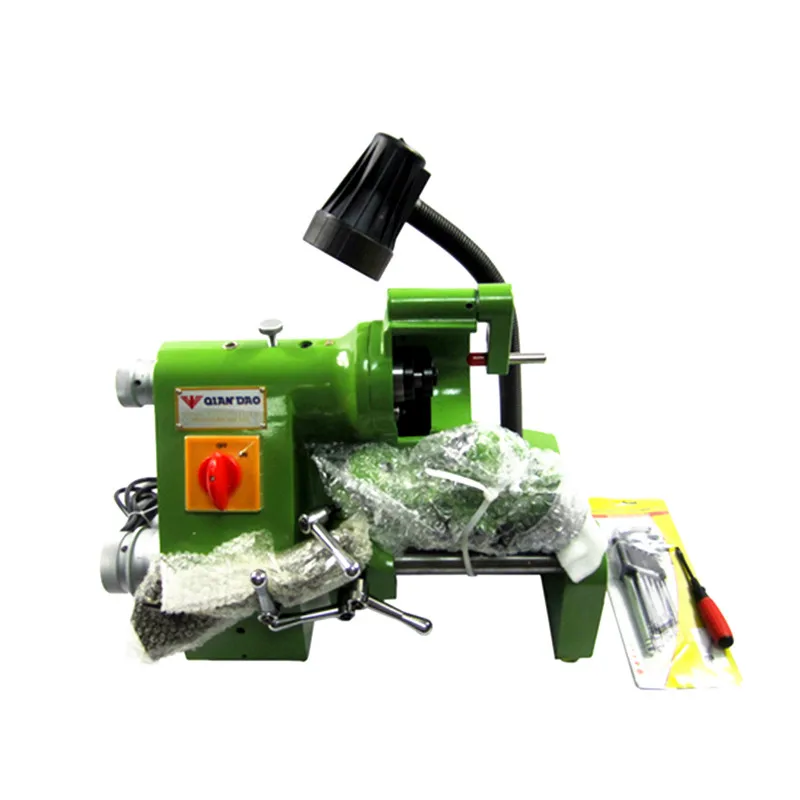

Standard Configuration:

1. Cutter Grinder: 1 unit

2. Collets: 3 units (Φ4, 6, 8mm)

3. White Grinding Wheel: 1 unit

4. Driving Belt: 1 unit

5. Lockpin: 1 unit

6. Spotlight: 1 unit

7. Tools: 1 set

8. User Manual: 1 unit

9. Alignment Rod: 1 unit

10. Adjustable Diamond Grinding Wheel Dresser: 1 unit

Functionality:

The U2 Universal Cutter CNC is designed for grinding High-Speed Steel (HSS) and carbide engraving cutters. It can handle single lip or multiple lip cutters of various shapes, including radius cutters or those with negative taper angles. The machine features a universal index head with 24 positions, allowing users to obtain specific angles and rotations.

This CNC is particularly useful for:

• CNC Grinding End Mills

• Twist Drills

• Lathe Tools

The universal index head facilitates easy replacement and setup without the need for complex adjustments.

Whether you need to sharpen cutting tools or grind various shapes, the U2 Universal Cutter Grinder offers versatility and precision. The comprehensive standard configuration ensures you have the necessary accessories for various grinding tasks. 🛠️✨ #U2CutterGrinder #ToolSharpening #GrindingMachine #CNC #MillingMachine
