Lathe Miniature Milling Machine

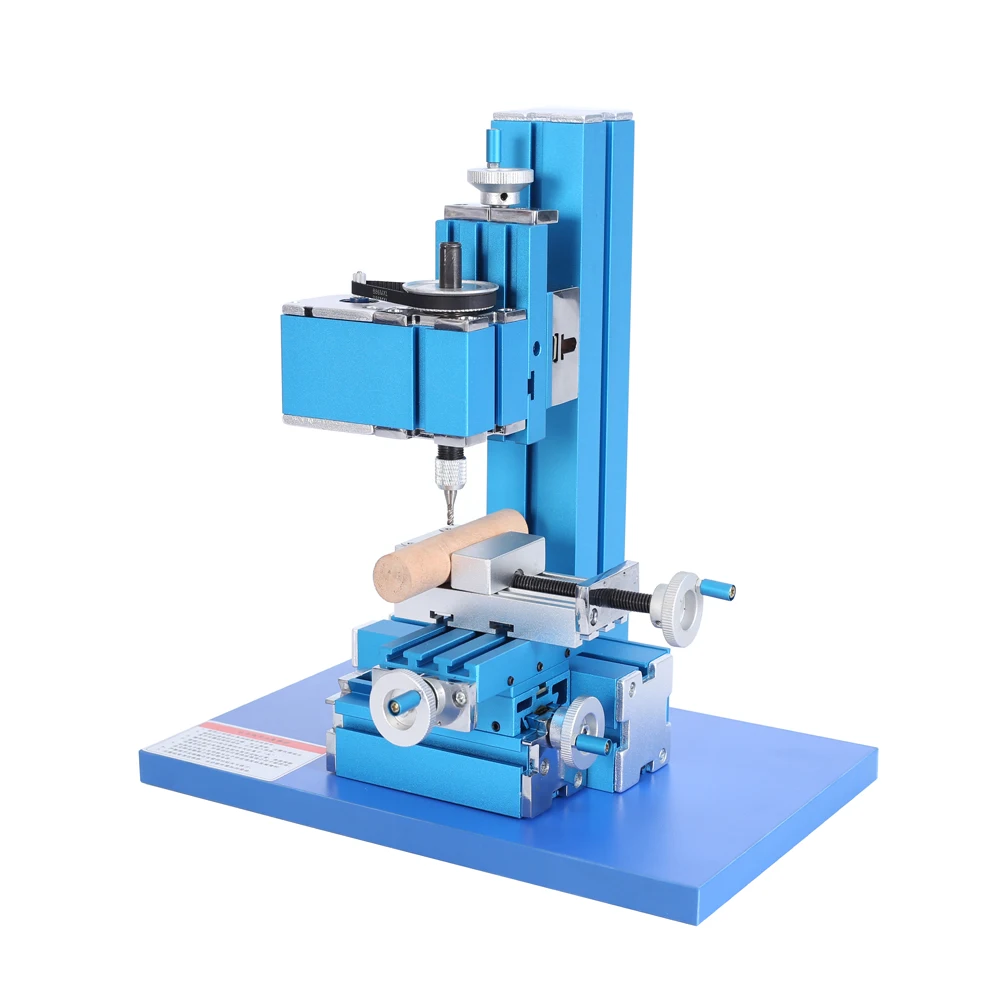

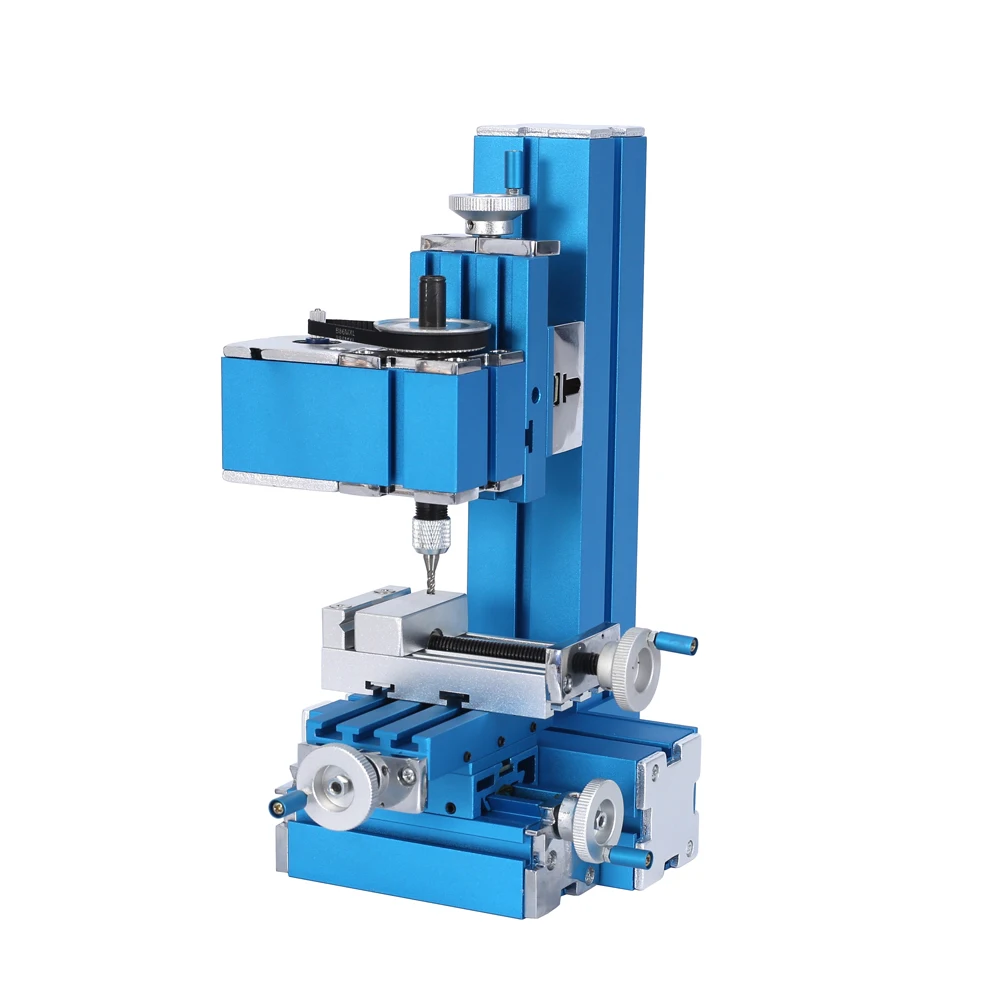

Lathe Mini Metal DIY Miniature Milling Machine

The Mini Metal Lathe is a versatile DIY tool designed for woodworking and metalworking applications.

Here’s a breakdown of its features and specifications:

Application:

• Ideal for use in Juvenile Activity Centers, School General Technical Rooms, Science and Technology Activity Rooms, and Student Science and Technology Creation in Science and Technology Museums.

Main Parts:

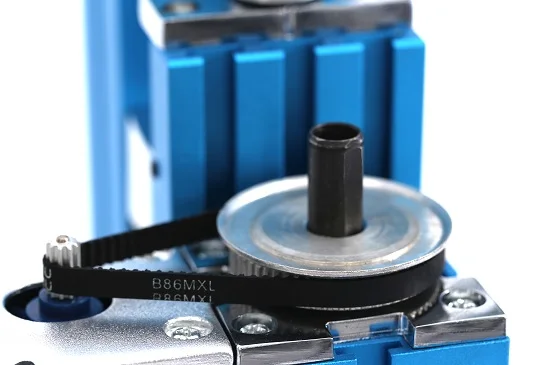

• The machine consists of key components such as the main shaft box, intermediate block, connecting block, tailstock, large slider, small slider, handwheel, and support. These parts are constructed from metal, enhancing product quality, durability, and precision.

Parameters:

• Input Voltage: AC100V~240V / 50/60HZ

• Output Voltage: DC12V 2A

• Motor Rated Power: 12W

• Motor Speed: High-speed motor at 18000r/min ±15%, Low-speed motor at 10000r/min ±15%

• Spindle Speed: High-speed motor at 3000r/min ±15%, Low-speed motor at 1600r/min ±15%

• Spindle Jump: <0.1mm

• Large Slider Stroke: 45mm

• Small Slider Stroke: 35mm

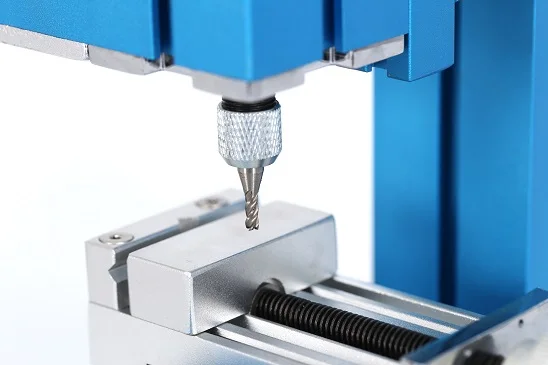

• Vise Clamp Size: 25mm*35mm

• Chuck Specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6

• Handle Scale: 0.1mm/division

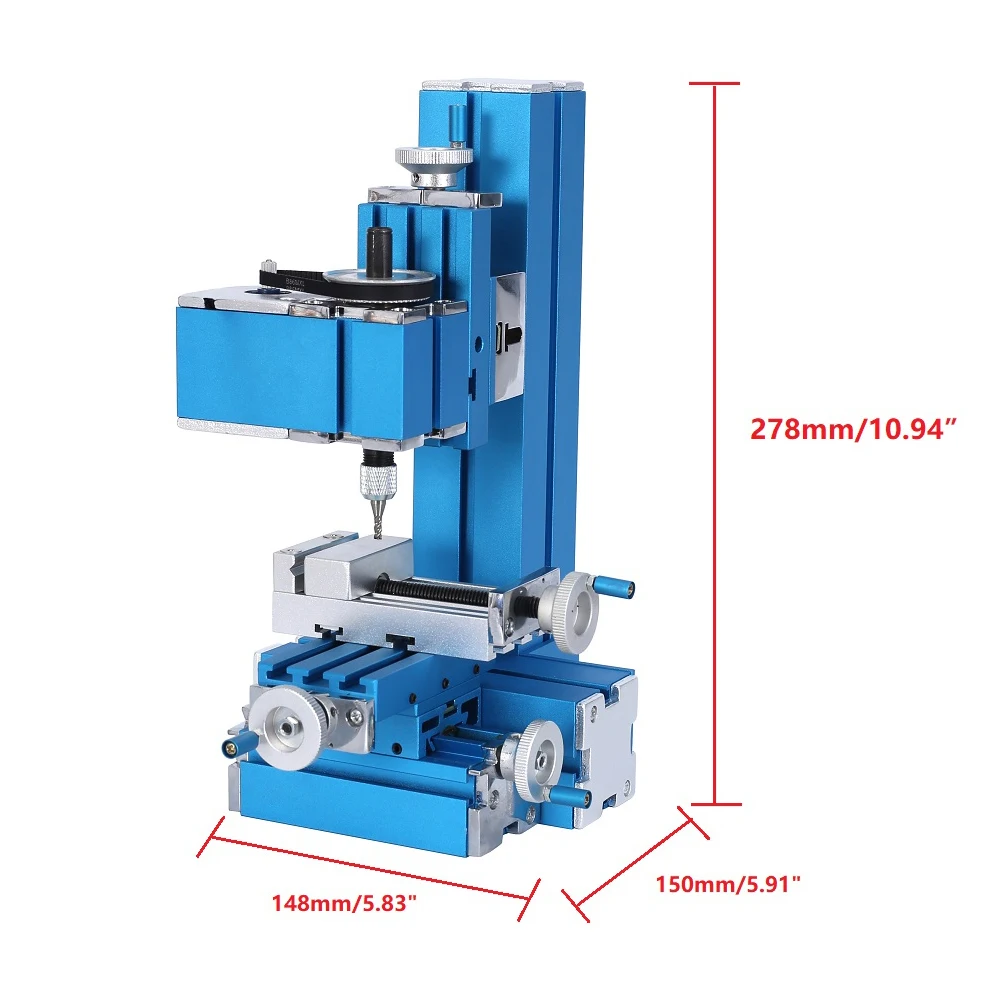

• Packing Size: 230mm200mm315mm

• Weight: 2.8KG

• Processing Ability: Capable of processing soft metals such as copper and aluminum.

Package Includes:

• 1 set of Milling Machine

This Miniature Milling Machine provides a compact and efficient solution for hobbyists and DIY enthusiasts looking to engage in precision woodworking and metalworking projects. The metal construction enhances durability, ensuring accurate and reliable performance. Perfect for educational and creative applications! 🛠️🔩 #MiniMetalLathe #MillingMachine #DIYTools #Lathe
