Precision Cutting with the LGK Portable Electric Welding Machine – Your Ultimate Solution for Efficient and Clean Cuts!

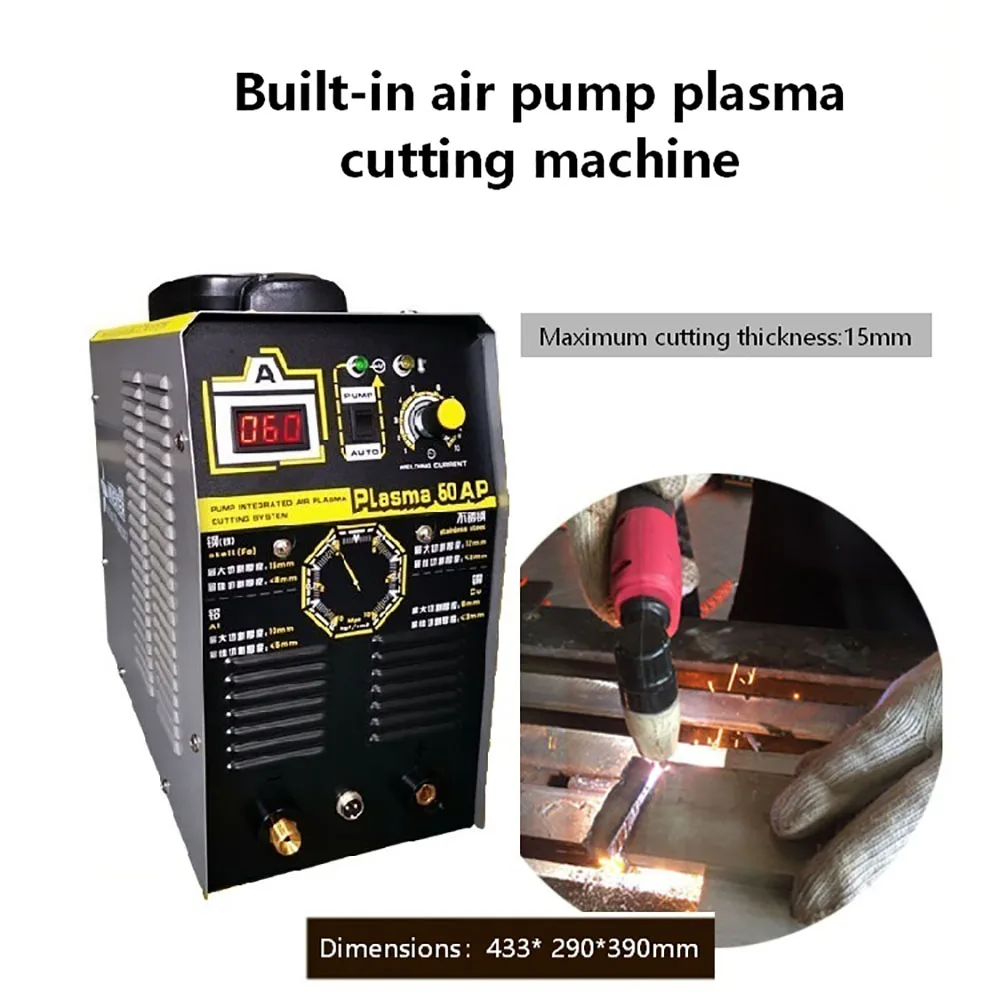

LGK 220V Built-in Air Pump
🌪️ PORTABLE AIR PLASMA CUTTING POWERHOUSE
Revolutionize your cutting tasks with the LGK Portable Electric Welding Machine. This 220V plasma cutting machine is equipped with a built-in air pump, providing you with the flexibility to cut through various materials effortlessly.
💡 FEATURE-RICH TECHNOLOGY
IGBT Inverter and PWM Technology:
-
-
Energy-efficient and low noise, ensuring optimal performance.
-
Compressed Air Cutting:
-
-
Utilizes compressed air as a cutting gas source, making it cost-effective and convenient.
-
Narrow Cutting Seams:
-
-
Achieve precision with narrow cutting seams, ensuring smooth cutting performance with minimal deformation.
-
Automatic Protection Mechanisms:
-
-
Over-voltage, over-current, and over-heat protection for enhanced safety and durability.
-
Robust Design:
-
-
Good heat dissipation, dust-proof, damp-proof, and anti-corrosion properties for longevity.
-
📊 TECHNICAL SPECIFICATIONS
- Power Voltage: AC 220V
- Frequency: 50/60Hz
- Rated Input Capacity: 6.3KVA
- Rated Input Current: 28.8A
- Rated Output Voltage: 100V
- No-load Voltage: 320V
- Current Range: 15-60A
- Rated Duty Cycle: 35%
- Power Factor: 0.89
- Efficiency: 85%
- Arc-Starting Method: High-Frequency Arcing
- Stagnation Time: 8-10s
- Air Pressure: 0.15-0.25Mpa
- Insulation Degree: H
- Protection Degree: IP21S
- Maximum Cutting Thickness: 15mm
- Recommended Cutting Thickness: Within 8mm
- Weight: About 20Kg
- Dimensions (mm): 433 x 290 x 390 mm
🏭 APPLICATION SCENARIOS:
-
Production Line Work
-
Plant Maintenance
-
Garage/Job Shops
-
Fabrication, and more

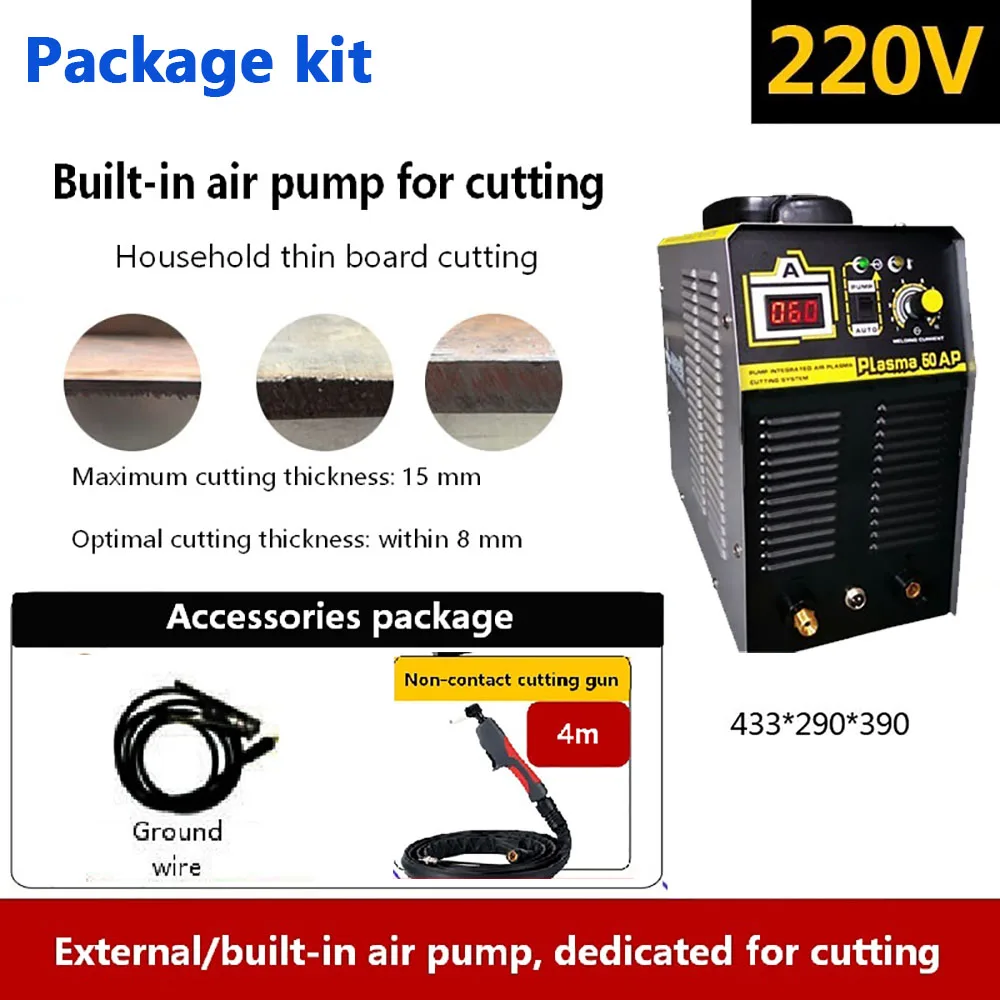

🛠️ PACKAGE A – ALL-IN-ONE CONVENIENCE:
-
1 Cutting Machine
-
1 8m Cutting Gun
-
1 3m Ground Wire
-
1 Accessories Package Gift
